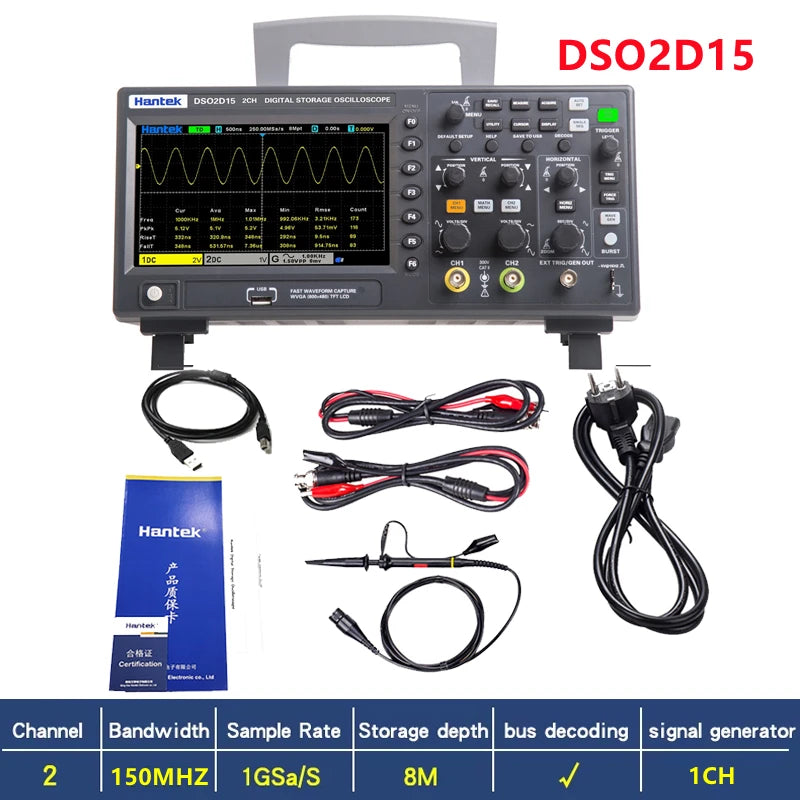

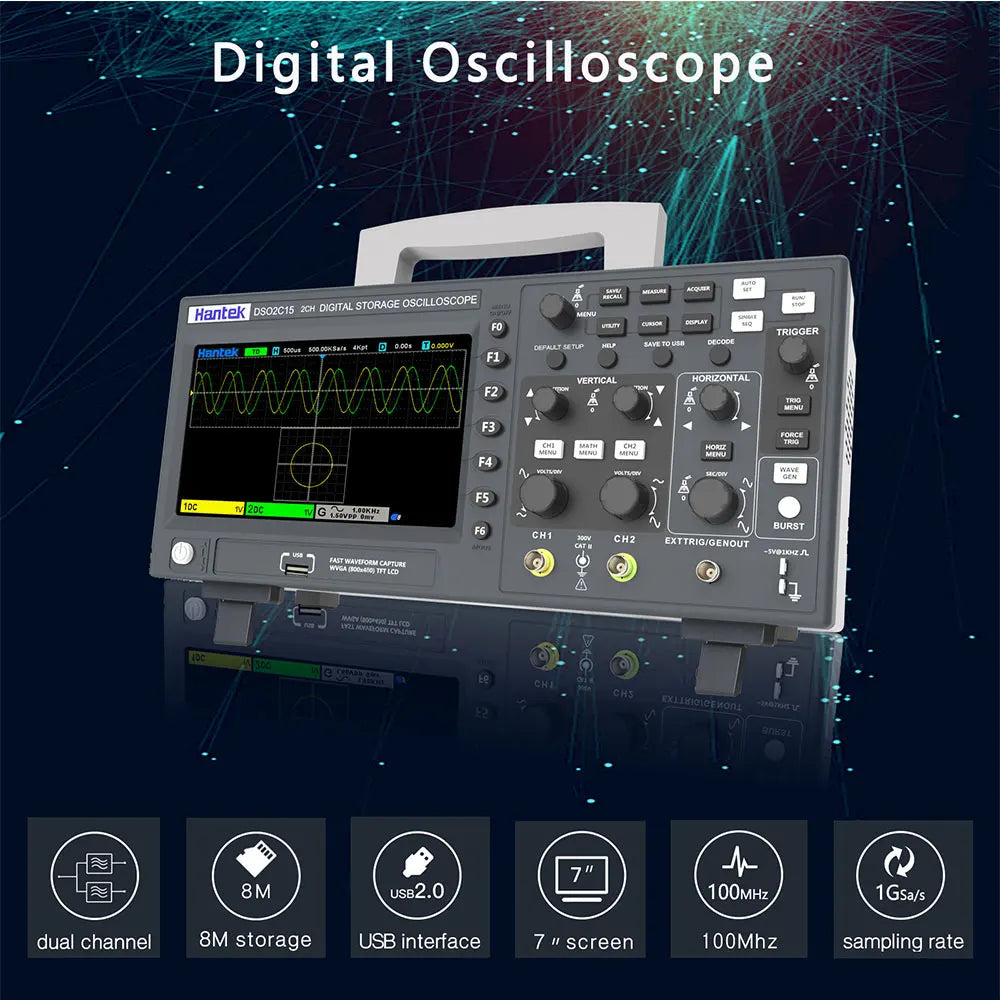

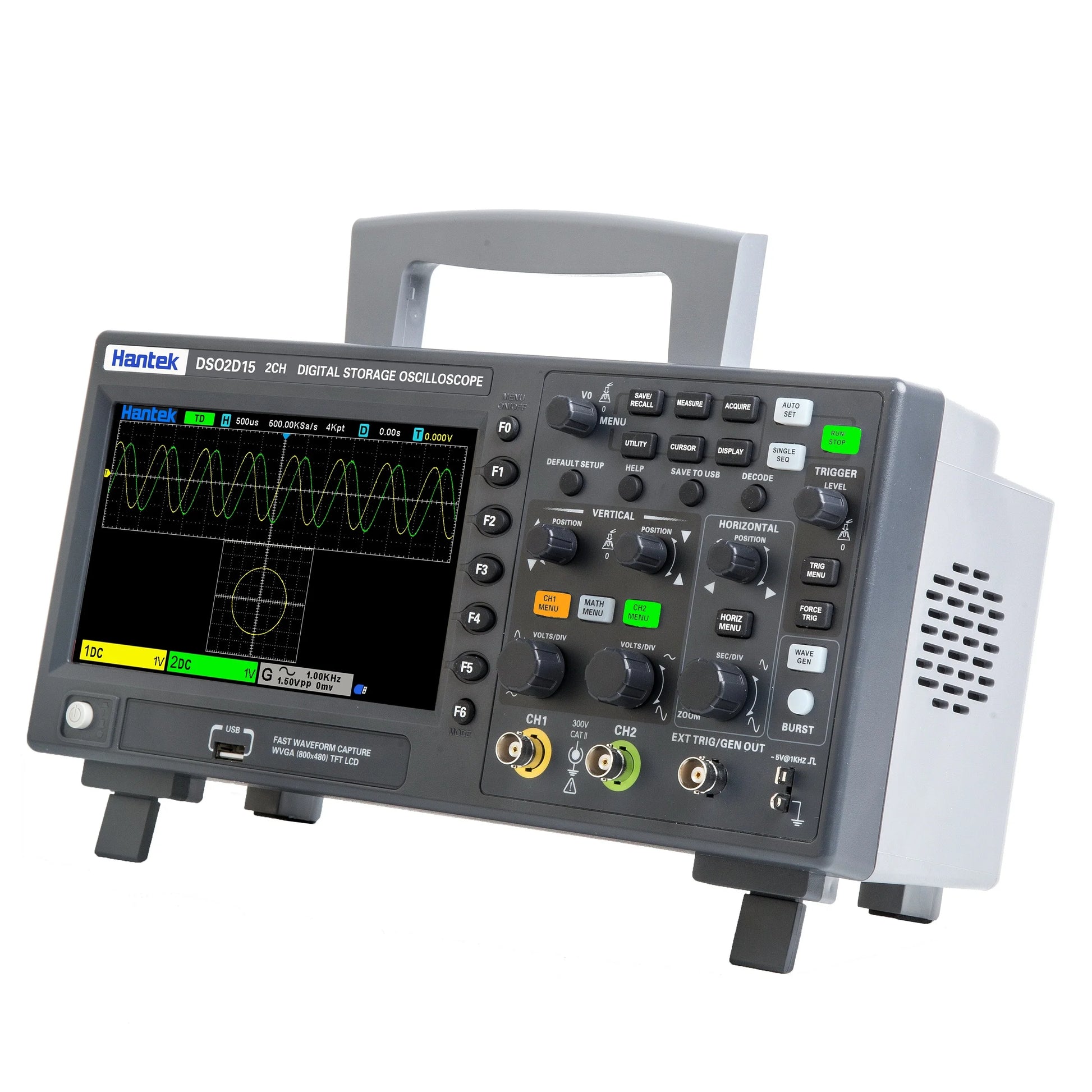

Features:

1) 2 channels, both are controlled respectively by independent knobs;

2) 100 MHZ, 150MHZanalog channel bandwidth;

3) 1 GSa/s real-time sample rate;

4) 8Mmemory depth;

5) Vertical scale 2mV/div ~ 10V/div;

6) Built-in 1 CH5MHz waveform generator;

7) Vertical resolution: 8bit;

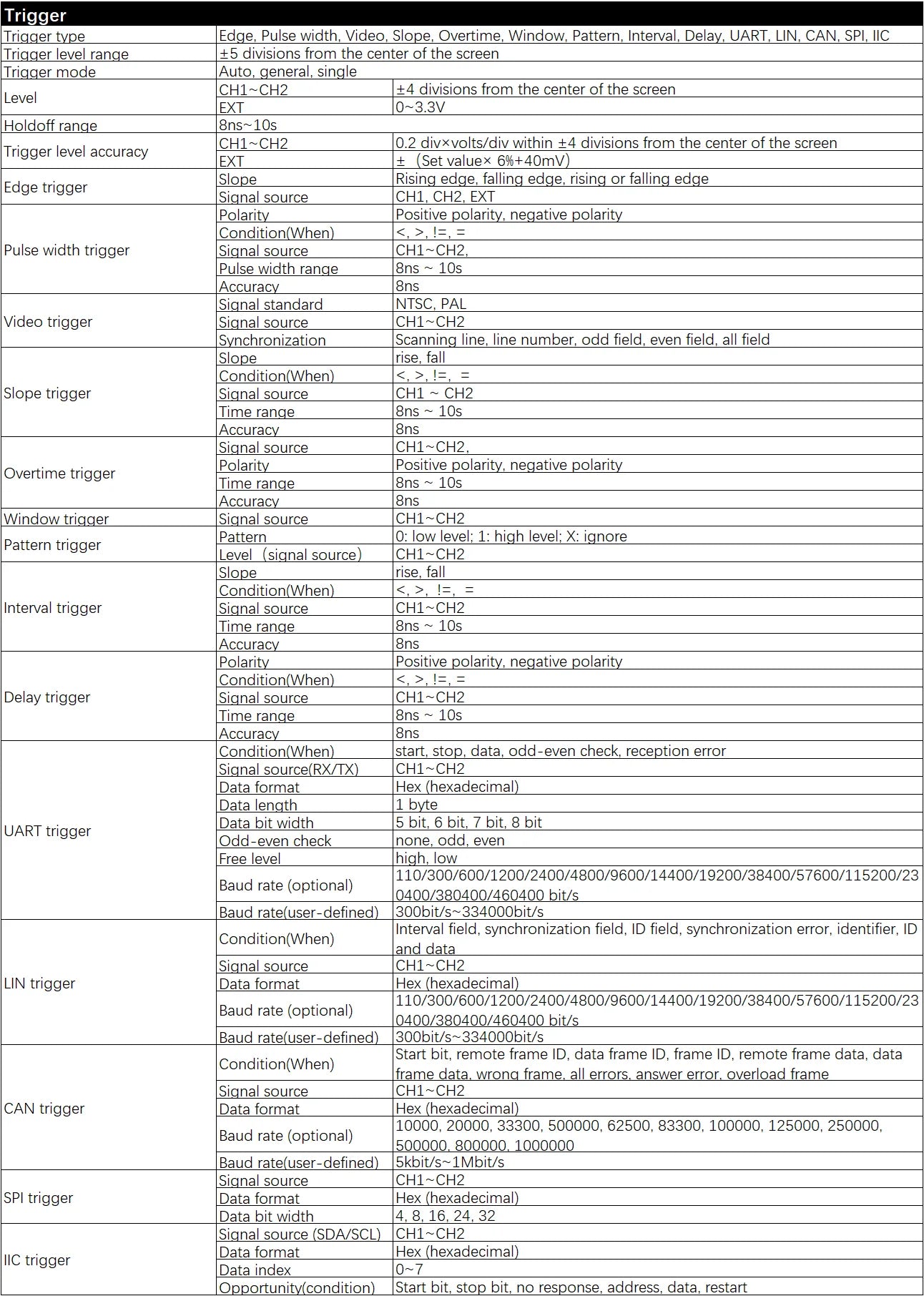

8) Trigger: edge, pulse width, video, slope, extra time, window, pattern, interval, delay, UART, LIN, CAN, SPI, IIC;

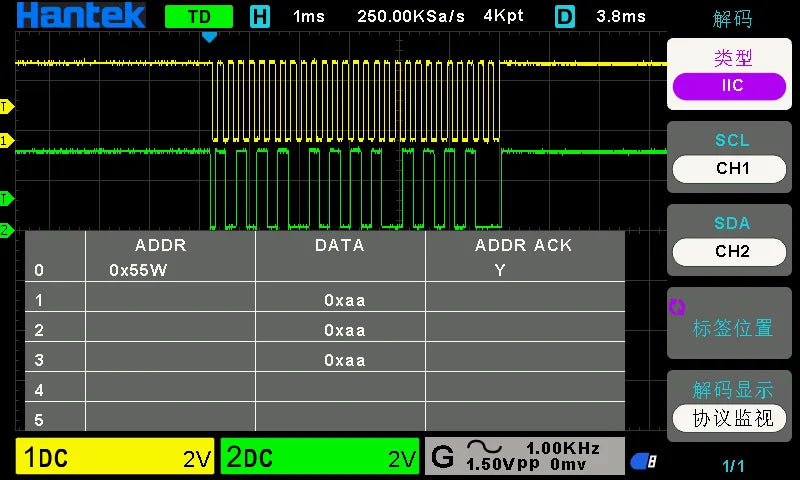

9) CAN decode and protocol analysis: RS232/UART,I2C,SPI,CAN,LIN

10) Can save as various data formats, such as configuration, waveform, cooling waveform, CSV, image;

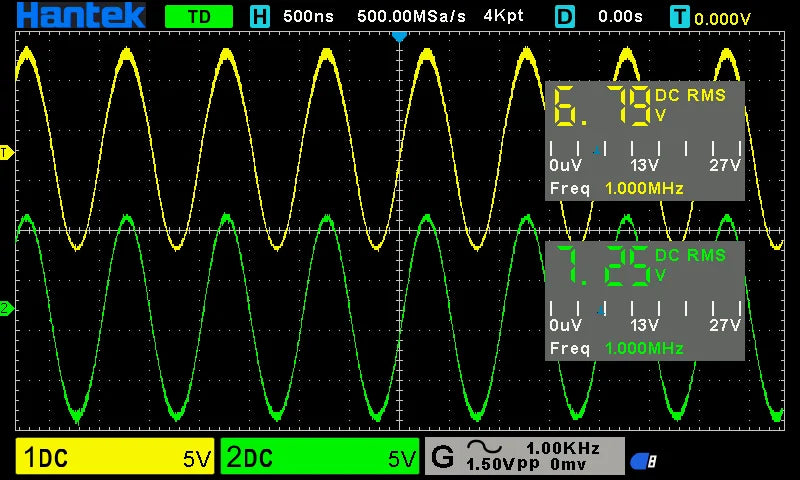

11) 5-bit digital voltage meter and 6-bit hardware frequency indicator function;

12) 32 types of self-measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc..;

13) 2 sets of digital voltmeters;

14) Support threshold test, free on-screen measurements;

15) Extensive SCPI remote control;

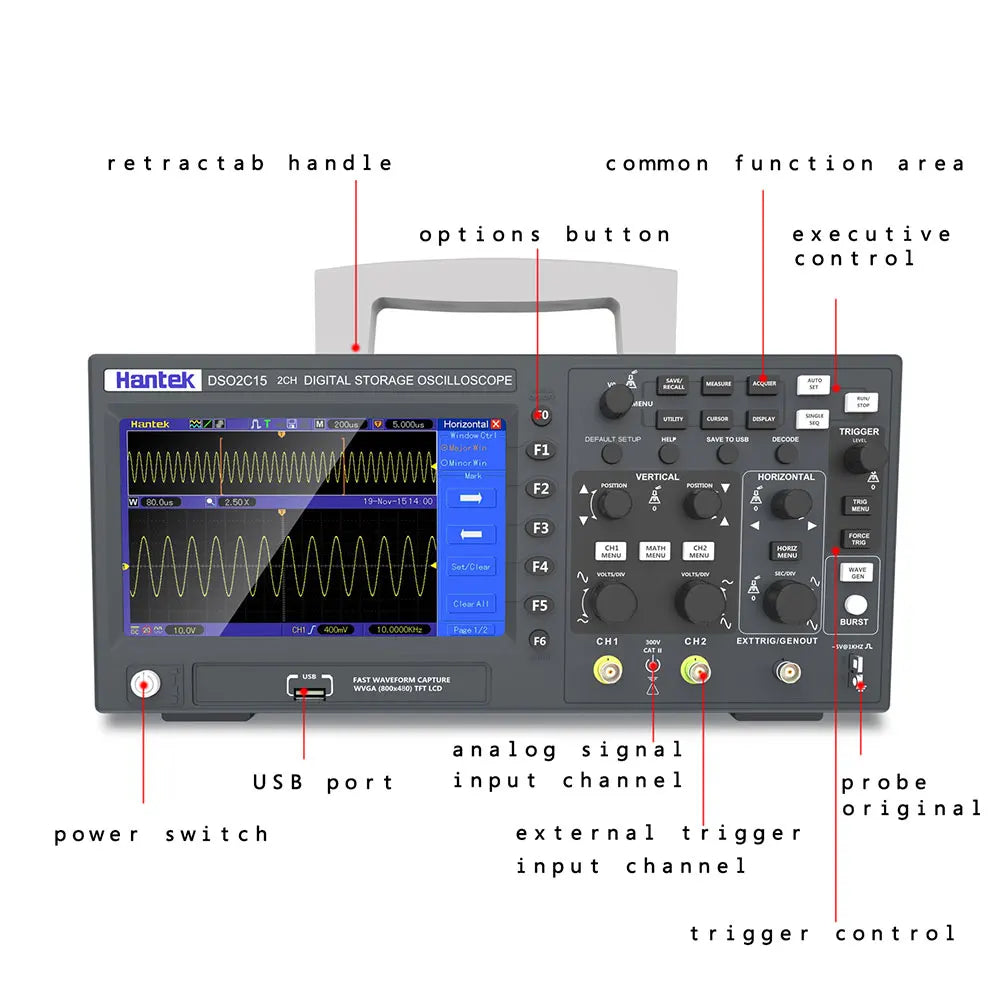

16) Many external interfaces: USB Host / Device.

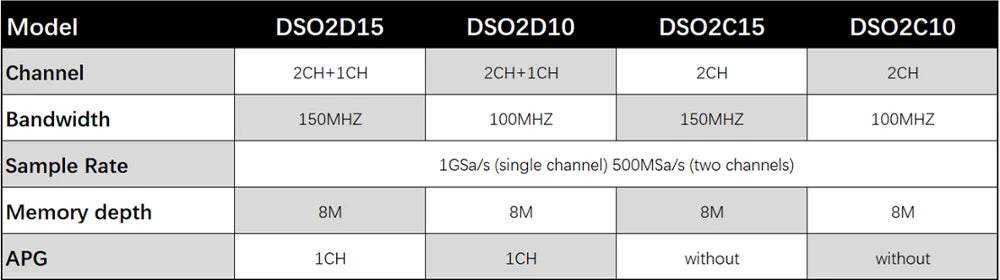

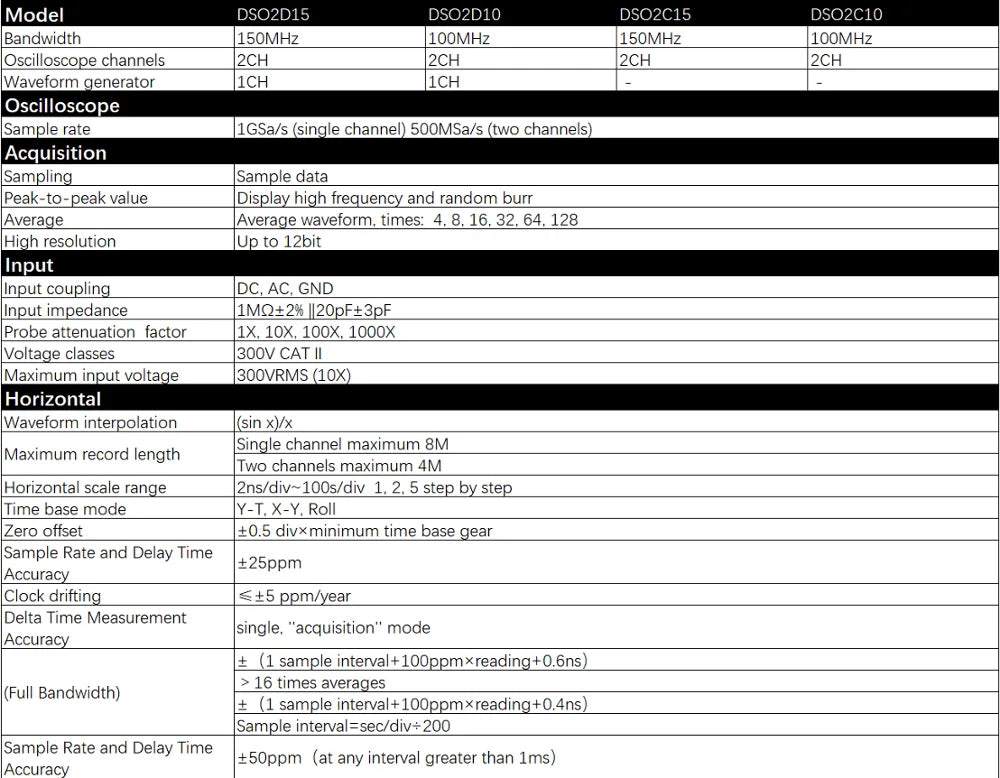

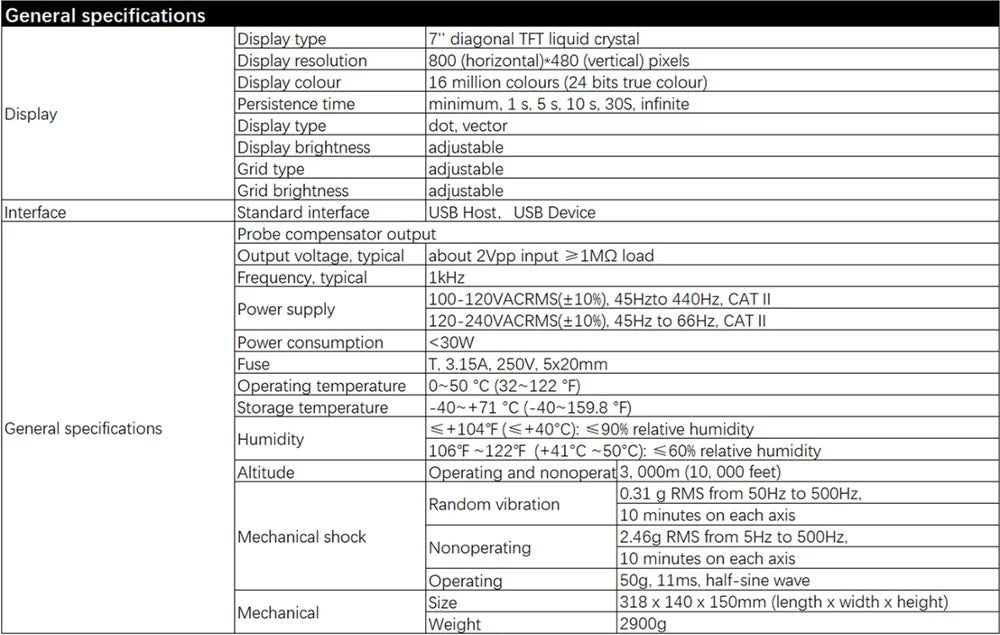

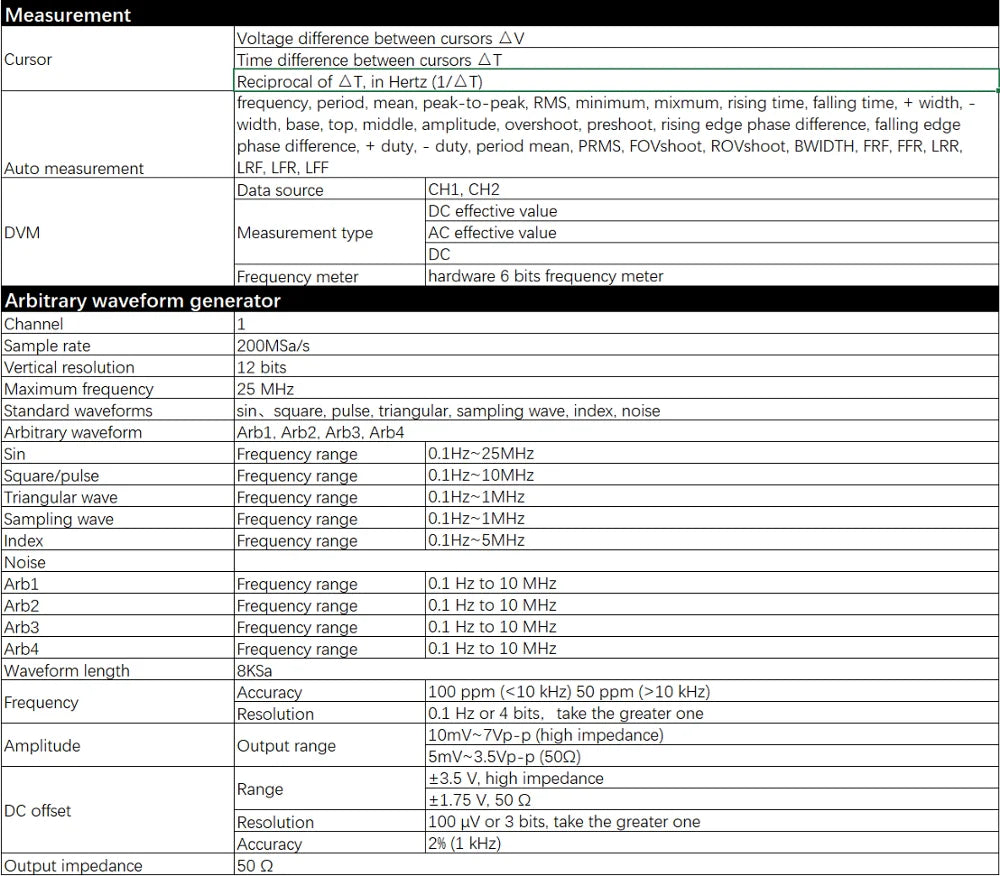

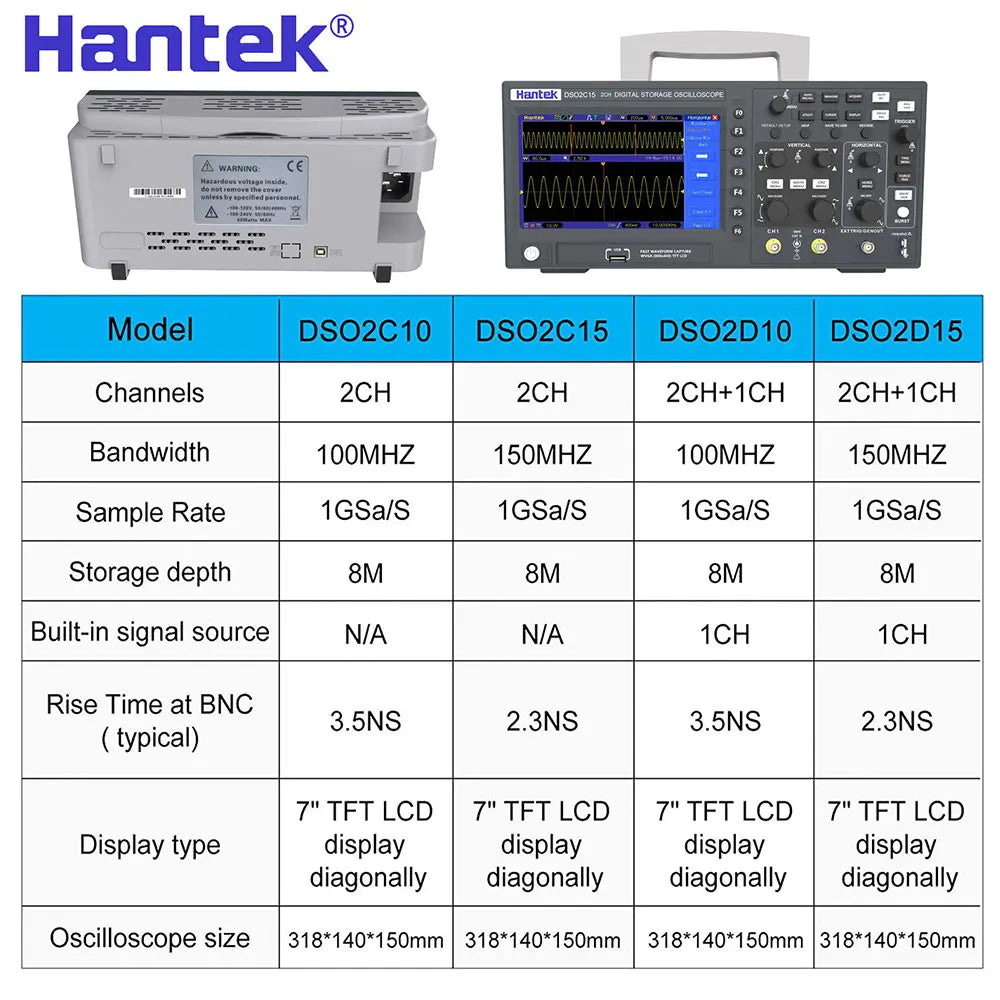

Technical parameters
